Replacement pH Electrodes for Lab Meters: Check the Connector, Junction and Sample First

A replacement electrode can plug into a pH meter and still be wrong for the work. This guide explains how to match the meter input, temperature path, junction and sample matrix, test the replacement before approval, and send a complete RFQ.

Updated September 25, 2026How Equipvia researches

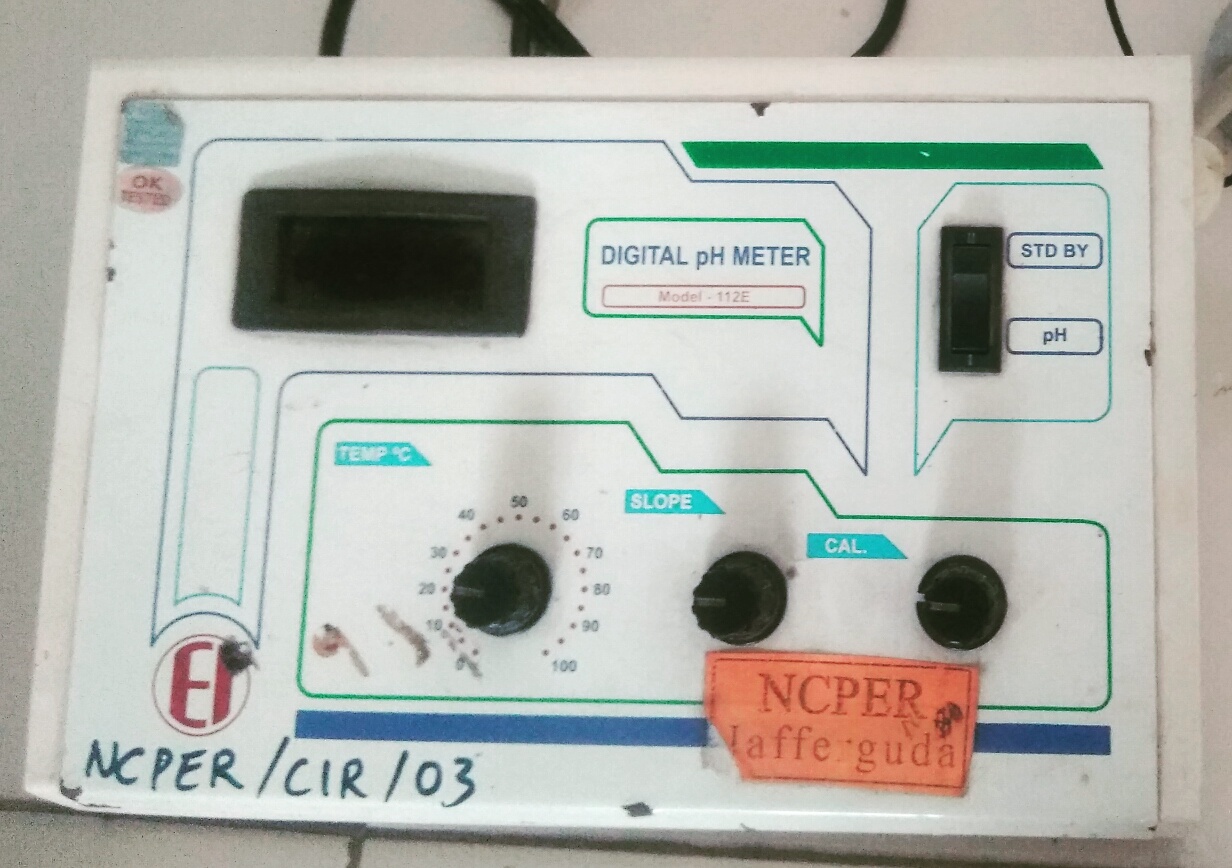

Digital laboratory pH meter with electrode
A replacement electrode must match the meter input, temperature connector, junction and sample matrix — connector alone does not establish compatibility. Photograph of a digital pH meter via Wikimedia Commons (CC BY-SA 4.0). View current REX listing.

Disclosure: We may earn a commission if you purchase through links on this page, at no additional cost to you.

A replacement electrode can plug into a pH meter and still be wrong for the work. The BNC connection may carry the pH signal while temperature uses another plug; a digital electrode may require a different meter altogether. A probe that performs well in ordinary aqueous buffers may respond poorly in viscous samples or become troublesome in protein-containing media. Before ordering, write down the meter model, current electrode part number and sample matrix. Those three details eliminate more mistakes than a generic claim of “universal compatibility.” [E01–E03]

This guide concerns detachable laboratory pH electrodes for benchtop and compatible portable meters. It does not cover industrial in-line probes, ORP electrodes, built-in pen-meter cartridges or a particular manufacturer's proprietary digital sensor system.

Start with the old electrode and the meter

Record the meter's manufacturer and model, then photograph every connector on the old electrode. A plain analog BNC plug, a BNC plus separate temperature plug, and a manufacturer's digital connector are different purchasing requirements. YSI's selection table, for example, lists both BNC and digital electrode families. Its BNC models can connect to meters with suitable BNC inputs, while the digital family is identified separately. Thermo Fisher's Eutech 1710 manual lists some electrodes with a BNC alone and a pH/ATC model with both BNC and 2.5 mm phono connections. These are specific product examples, not promises that any BNC electrode will preserve every feature of another meter. [E01, E02]

A BNC pH connection is a starting point. Confirm that the meter accepts a conventional combination pH electrode, that the connector physically fits, and how temperature will be measured. If the old assembly includes a separate ATC plug, match its connector and sensor type or follow the meter manual for an approved separate temperature probe and manual temperature entry. Do not assume that an electrode with an integrated temperature sensor can transmit that reading through an ordinary pH BNC alone. [E01, E02]

Existing system What to confirm before replacing
Analog pH input with BNC, separate temperature probe BNC electrode for the sample; keep or replace the correct temperature probe
BNC plus a second plug on the electrode cable pH BNC and matching ATC connector and sensor specification
Digital or smart-electrode port Exact compatible family, adapter if manufacturer-approved, and supported meter firmware
Fixed sensor or pen-meter cartridge Manufacturer-specific replacement module; do not order a generic BNC probe

Buyer check: obtain a meter-manual part number or a written cross-reference that identifies both the meter model and the proposed electrode SKU. A visual connector match alone is not a documented substitution.

Match the junction to what you measure

The reference junction is where the electrode's reference system contacts the sample. Its design and electrolyte matter because contamination or clogging changes the stability and response of the measurement. Thermo Fisher's selection handbook identifies viscous and dirty samples as conditions where junction flow and cleanability warrant attention; it also explains why a double-junction reference can prevent silver ions from reaching samples containing TRIS, proteins or sulfides. [E03]

For routine aqueous solutions, a specified general-purpose electrode may be enough. For TRIS buffers or protein-rich samples, ask for an electrode and reference system documented for that matrix. For viscous suspensions, oils or low-conductivity water, consult a maker's application guide instead of assuming a general water probe is suitable. The sample problem may be the junction, electrolyte or membrane geometry, not the meter's nominal pH range. [E03, E04]

“Double junction” is an informative feature, but it is not a universal quality grade. It does not prove that a listing works in every protein formulation, low-ionic sample or harsh cleaning solution. Request the junction construction, outer electrolyte, intended sample range and maintenance instructions for the exact model. [E03, E04]

Choose the body, tip and filling system deliberately

A glass body may be appropriate where chemical resistance and easy cleaning matter; a polymer body may be useful where breakage is a concern. The sensing bulb or tip must physically fit the vessel and reach the sample. YSI's guide shows that even within one product range, shaft material, refillability, tip shape, junction type and temperature-sensor presence vary independently. Buying by connector alone discards those distinctions. [E01]

A refillable electrode allows the correct reference electrolyte to be replenished according to its instructions, but it brings maintenance steps and handling requirements. A sealed gel-filled electrode simplifies routine handling, although it should never be described as maintenance-free in every operating condition. Thermo Fisher's meter manual lists both refillable and gel-filled BNC electrodes for the same meter family; it also distinguishes a gel-filled pH/ATC variant with a second temperature connector. [E02]

Check temperature and pH ranges in the exact electrode datasheet. A meter displaying 0–14 pH does not establish that a particular sensor will withstand every solvent, temperature or process condition. A supplier's “0.01 pH accuracy” in a marketplace field also lacks meaning unless it specifies the test method and whether the claim refers to the electrode or the display. Do not transfer a meter's resolution to a probe's performance. [E02, E05]

Test the replacement before approving a supplier

When the electrode arrives, inspect the bulb, junction, fill level where applicable, cable and storage cap. Follow its own hydration and storage instructions. Vernier's BNC electrode manual, for example, instructs users to keep its reference junction moist and gives a recovery procedure for an inadvertently dried probe. That procedure is for that model; use the replacement manufacturer's instructions for another electrode. [E06]

Calibrate with fresh, appropriate buffers bracketing the actual sample range, following the meter and electrode manuals. Record the buffers and their temperatures, calibration slope/offset as reported by the meter, time to stabilize, and a check reading in an independently prepared or retained control. Compare the result with the lab's acceptance criteria and an approved electrode where available. If the new probe fails, verify meter configuration, temperature input, buffer condition and storage before assigning the fault to the electrode. [E02, E03]

For recurring procurement, keep the electrode model and lot, reference electrolyte, approved sample types, calibration records and supplier documents together. A one-unit trial is particularly useful when replacing a retired part number with an unfamiliar brand. There is no universal pass/fail slope or stabilization time suitable for every electrode and SOP; set acceptance using the instrument and method requirements. [E03]

Sourcing leads for a BNC replacement

Affiliate disclosure: We may earn a commission if a qualifying purchase is attributed to either Alibaba link below. The two links are user-supplied CPS URLs. On 2026-09-25 each redirected to the expected Alibaba Product ID and retained cps_sk=qecacded in the landing URL. This checks the destination and a visible tracking parameter; actual attribution or commission cannot be confirmed without Affiliate Reports. All candidates remain document and sample inquiries, not validated substitutes for a specified meter. Listed in order of appearance, with no ranking implied.

Sourcing Candidate A — REX E-201 double-junction listing

Role: documentation-rich double-junction candidate; still a VERIFY lead because the title and attributes describe different model numbers. Stated: REX (Shanghai) Technology Co., Ltd.; title describes an E-201 double-junction lab pH electrode; attributes give model ph-2-225, PC body and 12 × 120 mm size. The visible listing shows a five-piece price tier. Not stated / not independently verified: that ph-2-225 and “E-201” describe the same supplied item, exact connector and temperature input, junction/electrolyte specification, calibration performance and compatibility with your meter. Ask: Send the current datasheet and actual label for this Product ID, identify the connector and junction, and quote a sample of the precise SKU. The title/attribute mismatch keeps this lead at VERIFY. [E05]

Sourcing Candidate B — SCITEK 201PRO technical inquiry

View the manufacturer's published 201PRO specifications · Checked 2026-09-25. Stated by supplier: BNC connection, PC body, double liquid junction, PTFE junction, 3 mol/L KCl gel, non-refillable, 12 × 165 mm shaft and 1 m cable. Not stated / not independently verified: suitability for your exact meter and sample, independent performance, and an Alibaba offer with a verified Product ID or CPS link. Ask: Provide the official current datasheet and the exact Alibaba listing for the same 201PRO configuration. This is a technical lead, not a validated Alibaba affiliate offer. [E07]

Sourcing Candidate C — ACITEK pHP12-120-01B routine-water trial

Fit limit: the listing’s stated applications emphasize irrigation and water treatment. The “0.01 pH accuracy” field has no test method and is not adopted as electrode accuracy. Stated by seller: Shanghai Guizhen Instrument Equipment Co., Ltd.; one-piece MOQ; supplier description identifies analog model pHP12-120-01B, BNC connector, PP shaft, glass bulb, ceramic junction, Ag/AgCl reference, 3 M KCl filling liquid, 12 × 120 mm body and 0–60 °C range. Fit limit: its stated applications emphasize irrigation and water treatment, not a documented lab-meter replacement. The listing's 0.01 pH accuracy field has no test method and is not adopted here as electrode accuracy. Request a current SKU datasheet, electrolyte/refillability and the meter-model cross-reference, then trial the exact sample against the lab's acceptance criteria. This is VERIFY / inquiry-only, not a recommended substitute for a specified laboratory probe. [E08]

For a manufacturer's documented alternative, Sensorex's S1021CD/BNC product page describes a refillable double-junction probe for certain difficult samples. It is a direct manufacturer reference, not a ranking or claim that it fits your meter. [E04]

Sourcing decision: Roles screened were (1) routine BNC replacement with a manageable sample order, (2) documentation-rich double-junction option and (3) meter-specific original-equipment cross-reference. The REX listing has a model-title conflict and missing connector/junction evidence; SCITEK lacks a confirmed Alibaba Product ID; ACITEK has a clearer model and BNC specification but no documented laboratory-meter/sample fit. None passes the complete identity/fit hard gate. Generic aquarium BNC probes, complete meters, in-line RS485 probes and ORP electrodes were excluded as different buyer tasks. The user supplied CPS URLs for REX and ACITEK. Their redirected landing Product IDs match 1600233601333 and 1601047560526 respectively; both landing URLs showed cps_sk=qecacded. The browser reached an Alibaba slider check rather than the product content. These checks do not clear the product-fit hard gate or establish an attributed click. Keep Merchant, Product, CPS and Final scores UNKNOWN until the exact SKU and compatible meter evidence pass screening and Affiliate Reports confirms attribution. [E05, E07]

Copy this replacement request to a supplier

Meter manufacturer/model: ____; existing electrode SKU and photographs of all plugs: ____; whether temperature measurement is integrated or separate: ____; samples and solvents: ____; typical pH and temperature: ____; sample volume and vessel opening: ____; current junction/electrolyte and known fouling issue: ____; required shaft and cable length: ____; proposed replacement SKU and datasheet revision: ____; reference electrolyte and storage instructions: ____; compatible meter-model evidence: ____; sample quantity, MOQ and lead time: ____.

The supplier's answer should identify one purchasable configuration, not a family of probes with different connectors. Approve it only after physical fit and the lab's calibration and sample check.
