What IP Rating Do Soil Moisture Sensors Need for Buried Installation?
A soil-moisture probe can be advertised as IP67 or IP68 and still fail in a buried installation. This guide separates the enclosure rating from the cable entry, connector, burial depth, chemistry and mechanical protection—and gives the RFQ and pre-trench acceptance test.
Disclosure: We may earn a commission if you purchase through links on this page, at no additional cost to you.
IP68 is a starting point, not an installation specification. A soil-moisture probe may be advertised as IP67 or IP68 and still fail in a buried installation. The rating describes a test condition for an enclosure. It does not, by itself, describe the cable entry, the mating connector, the burial depth, the duration of exposure, the effect of fertilizer salts or the mechanical protection needed in a field. The useful procurement question is therefore not "Is this sensor waterproof?" It is "Which parts of this installation have been tested, under which conditions, and will those conditions remain true after the cable is buried?"
The International Electrotechnical Commission describes the IP Code as a classification of protection provided by enclosures against solids and liquids [E01]. For a soil sensor, that code should be treated as one line in an installation specification. This guide separates the enclosure from the rest of the deployment, shows when IP67 can be adequate, and gives an RFQ and pilot checklist for probes that will remain in soil for weeks or years.
Read the two IP digits as test categories
The first digit addresses protection against solid ingress. A "6" is commonly used for a dust-tight enclosure, but the claim still belongs to the tested assembly, not automatically to every accessory attached to it. The second digit addresses liquid ingress under a defined test. Higher does not mean "immune to every wet environment." Different water tests address different exposures, and a rating on the probe body does not transfer to an unmated connector or a cut cable.
| What the listing says | What it actually tells the buyer | What remains open |
|---|---|---|
| IP67 | The quoted assembly passed the manufacturer's stated IP67 test scope, if the claim is documented. | Whether the same condition applies during continuous burial, cable bending, washdown, salt exposure and a field-mated connector. |
| IP68 | The quoted assembly passed a higher-level immersion test under a specified depth, duration and configuration, if documented. | The exact depth/time, whether the connector was mated, whether the cable gland was included, and whether the test resembles the buyer's soil and chemistry. |
| "Waterproof" or "buried type" | A discovery lead or seller description. | The standard, test report, sample configuration, maintenance limits and failure boundary. |

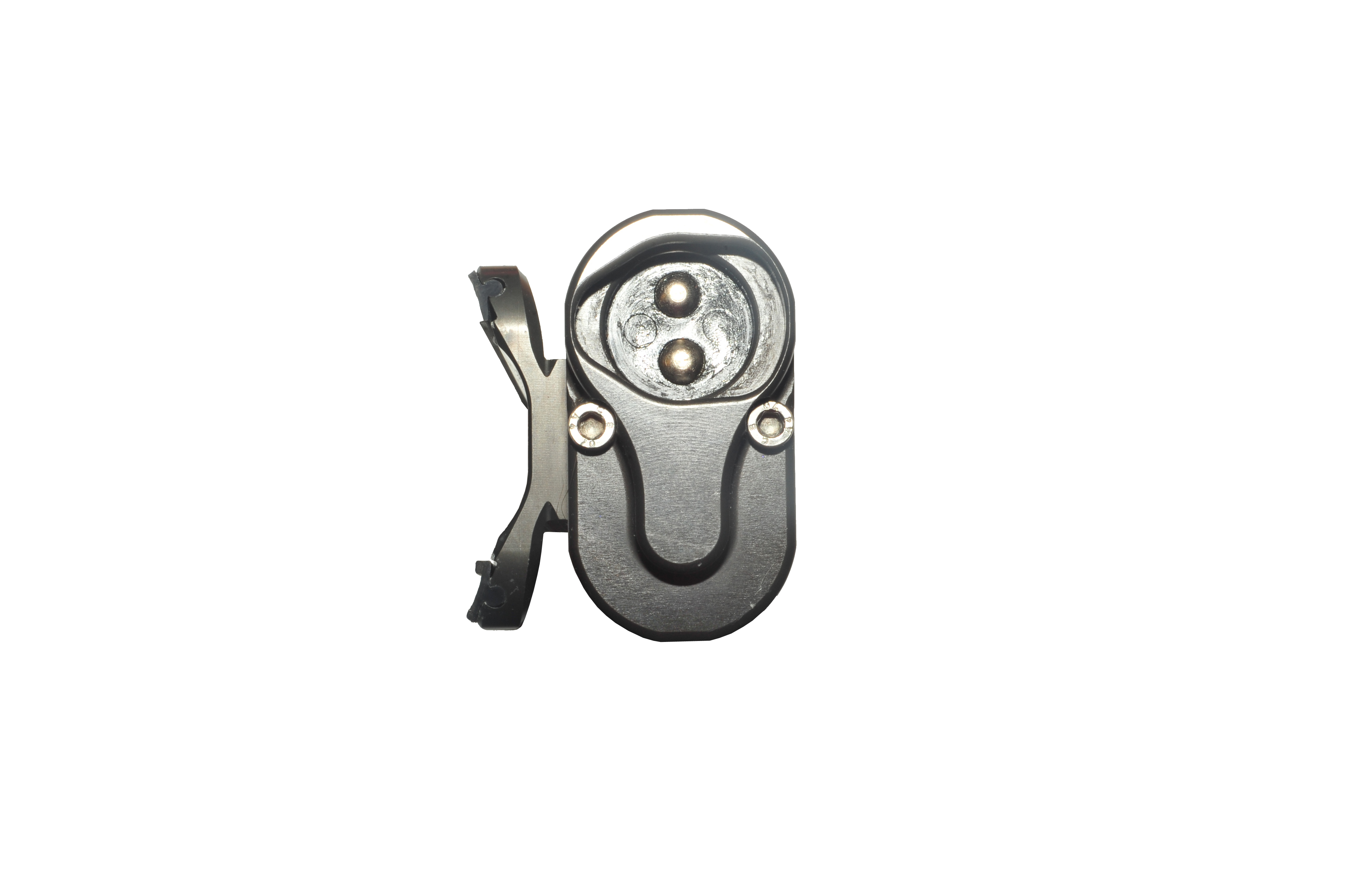

Ask for the test condition rather than translating the label into a service life. Delta-T, for example, publishes an IP68 statement for its soil sensors but separately warns that connectors must be clean, dry and tightened correctly; its FAQ also describes a particular burial test depth rather than an unlimited burial claim [E02]. That is the level of specificity a buyer should seek.
The weak point is often outside the probe body
A buried installation is a chain of interfaces. Water can enter at any point where the chain is weaker than the probe shell. Review each item separately before accepting an IP claim.
| Installation part | Questions that change the risk | Evidence to request |
|---|---|---|
| Sensing body | Is the IP claim for the complete probe, a housing, or only a test sample? Is the sensing surface intended to remain in soil? | Datasheet revision, test standard, tested configuration, depth/time and temperature range. |
| Cable and moulding | Is the cable jacket suitable for permanent burial, flexing and the expected chemicals? Is the moulded transition part of the tested assembly? | Cable material, diameter, bend radius, burial/UV guidance and chemical compatibility statement. |
| Connector and gland | Was the connector mated, capped or left open during testing? Can field staff close it without tools or torque control? | Connector datasheet, mating procedure, torque value, cap/gland specification and a wet/continuity check. |
| Transceiver or logger enclosure | Is the radio/logger above ground while the probe is buried? Does the enclosure have its own IP rating and sealed cable entry? | Separate enclosure rating, cable-entry drawing and installation/maintenance instructions. |
| Mechanical protection | Can rocks, cultivation, rodents or settling soil pull the cable or crack the transition? | Conduit recommendation, strain relief, minimum bend radius and replacement method. |
A clean, dry connector that is fully tightened is not an administrative detail. It is part of the environmental boundary. Campbell Scientific's field-maintenance guidance similarly treats cable-entry seals and water control as items that must be checked during site visits [E03]. If the installation cannot be opened, dried and re-sealed in the field, specify a serviceable above-ground junction instead of burying an unverified connection.
Choose the rating from the actual deployment
The right rating depends on where the wet boundary is and how the site is maintained. A permanently buried probe with an above-ground logger is not the same system as a wireless all-in-one node buried with its antenna and battery enclosure.
| Deployment | Minimum design question | Practical direction |
|---|---|---|
| Buried probe and fixed cable | Can the complete probe, cable transition and buried length tolerate the specified soil, depth, movement and chemistry? | Prefer a documented IP68 probe or equivalent evidence, then protect the cable in conduit where mechanical damage is credible. |
| Probe with an above-ground logger | Is the probe sealed while the logger remains accessible and separately protected? | Treat probe and logger as two environmental zones; do not use the probe rating as the logger rating. |
| Wireless node at the surface with buried probe | Does the transceiver enclosure have its own rating and can the probe connector remain dry? | A split design can simplify service, but the cable entry and connector become exposed interfaces. |
| All-in-one buried node | Are battery, antenna and electronics sealed as one tested assembly? | Confirm service access, battery replacement and antenna performance when buried. |
Chemistry is not covered by the IP digits
Fresh water and fertigation solution are not the same environment. Sodium hypochlorite, acid injection, high-salinity water and fertilizer salts can attack a material stack that passed a clean-water immersion test. A sensor can be electrically sealed and still corrode or become chemically incompatible over a season.
| Medium | What the IP test does not establish |
|---|---|
| Clean irrigation water | Long-term burial under continuous moisture, root activity and soil pressure. |
| Wash-down or hose exposure | Pressure-jet cleaning, detergent chemistry and repeated thermal cycling. |
| Saline or fertigation soil | Has the material stack been evaluated for long-term chemical exposure? Request stainless-steel/polymer grades, corrosion data and a sample soak or field pilot; do not infer chemical resistance from IP digits. |
IP ratings also do not establish measurement quality. A probe can remain dry inside and still produce a poor moisture estimate because soil contact, texture, salinity, installation depth or calibration is wrong. Keep the ingress decision separate from the measurement-validation decision.
What to put in the RFQ
A useful RFQ turns "IP68 waterproof" into testable requirements. Ask the supplier to answer against the exact model number and variant, not a family brochure.
- Which component or complete assembly carries the IP rating: probe, cable transition, connector, gland, transceiver enclosure or all of them?
- Which test standard and revision were used, and what were the depth, pressure, duration, temperature and test configuration?
- Was the connector mated, capped or exposed during the test? What torque, sealing washer or gland procedure is required in the field?
- Is the supplied cable rated for permanent burial, repeated bending, UV exposure and the buyer's soil or fertigation chemistry?
- What is the maximum recommended burial depth and what mechanical protection is required around the cable and connector?
- Which parts are user-serviceable, and how should a buyer inspect, dry, re-seal or replace them after a seasonal installation?
- What evidence supports corrosion resistance for the specified probe material, and is it valid for saline or fertilizer-rich soil?
- Can the supplier provide a current datasheet, installation drawing, test report or declaration tied to the exact quoted Product ID?
Two sourcing candidates with different ingress roles
The following are sourcing candidates for an RFQ and pilot, not certified recommendations. Their purpose here is to make the buyer compare a documented IP68 probe claim with an IP67 listing, not to imply that either rating is automatically adequate for every burial depth or chemical environment.
Candidate — Renke agricultural TDR soil-moisture probe
Candidate — Rika RK520-02 RS485 soil probe
A simple acceptance test before the trench closes
The most expensive ingress failure is the one discovered after the cable is buried and the crop cycle has started. A short acceptance test cannot reproduce every year of field exposure, but it can catch a missing cap, loose gland, damaged moulding or wrong connector before the installation becomes inaccessible.
- Photograph the model number, cable exit, connector and any sealing parts before installation. Record the Product ID and datasheet revision in the deployment record.
- Inspect the probe, cable jacket and moulded transition for cuts, flattening, cracks or contamination. Do not install a damaged assembly and call it IP-rated.
- Assemble the connector exactly as instructed. Record the torque, cap or gland condition and keep the mating surfaces clean and dry.
- Check conductor continuity and, where the supplier specifies a method, insulation resistance before burial. Do not apply a test voltage that exceeds the electronics specification.
- Run a short wetting or immersion check only within the supplier's documented limits. A field check is not a substitute for the manufacturer's IP test report.
- After installation, verify stable communication, sensor output, timestamps and battery/power status. Repeat the check after the first irrigation or heavy-rain event.
- Leave an accessible service loop or protected junction where the design requires it. Record the depth, orientation, conduit and soil condition so a later failure can be diagnosed.
If the supplier cannot state what was tested, classify the offer as a sourcing candidate for inquiry only. Do not turn an unqualified IP68 headline into a "permanent burial" claim.
Bottom line
For buried soil-moisture sensing, IP68 is a useful screening signal but not a complete installation specification. Confirm which assembly was tested, how the connector and cable entry are sealed, what depth and duration were covered, and whether the materials tolerate the site chemistry. Renke is a candidate for a wired IP68 probe role; Rika RK520-02 is a candidate for a more controlled IP67 installation role. The decision should be made from the exact variant's documentation and a small field pilot, not from the two digits alone.
Evidence and source notes
- E01 — International Electrotechnical Commission, IP ratings: https://www.iec.ch/ip-ratings
- E02 — Delta-T Devices, are soil moisture sensors waterproof and can they be buried: https://delta-t.co.uk/frequently-asked-questions/delta-t-soil-moisture-sensors-waterproof-can-buried/
- E03 — Campbell Scientific, on-site maintenance and cable-entry sealing guidance: https://help.campbellsci.com/crvw3/crvw3/maint-crvw3-networks/on-site-visits.htm
- E04 — Alibaba marketplace listing, Renke agricultural stainless-steel TDR soil-moisture probe, Product ID 1601686492135: https://www.alibaba.com/product-detail/Renke-Soil-Moisture-Temperature-EC-Sensor_1601686492135.html
- E05 — Alibaba marketplace listing, Rika RK520-02 RS485 soil probe, Product ID 62499801761: https://www.alibaba.com/product-detail/RK520-02-IP67-Soil-Moisture-Humidity_62499801761.html
- E06 — JoVE, in situ soil moisture sensors in undisturbed soils, installation method: https://www.jove.com/t/64498/in-situ-soil-moisture-sensors-in-undisturbed-soils
- E07 — Milesight, EM500-SMTC LoRaWAN soil sensor product information: https://www.milesight.com/iot/product/lorawan-sensor/em500-smtc
