Factory Calibration or Field Calibration for Soil Moisture Sensors

The phrase "factory calibrated" is not a performance guarantee for every field. Most soil moisture sensors infer water content from an electrical or dielectric response, then convert that response with a calibration relationship. If the soil, bulk density, salinity, temperature, installation and sensor variant differ from the conditions used to build that relationship, the number shown on the controller may be biased even when the sensor is functioning normally. The procurement question is therefore not whether a product has a calibration label. It is whether the supplied calibration is appropriate for the decision the buyer will make, and whether the buyer has a workable method to verify it in the working soil.

For simple irrigation automation, a factory curve can be a reasonable starting point when the user only needs repeatable wet–dry movement and will tune thresholds in the actual field. For research, water-balance calculations, cross-field comparison, or any specification expressed as quantitative volumetric water content, plan a site-specific validation.

What calibration does and does not prove

Calibration links a sensor output to a reference value under stated conditions. A product page may call the output "0–100% moisture," "RH," or "VWC," but those labels are not interchangeable. A displayed percentage can be relative, a volumetric estimate, or a supplier-defined index. Confirm the measurand, reference method, soil or substrate used, temperature range, salinity range, and whether the value is calculated in the probe, the logger, or the buyer's software.

Calibration is also different from validation and verification. Calibration creates or adjusts a conversion relationship. Validation tests that relationship against independent samples or a reference method in the intended use condition. Verification is a narrower check that a unit responds and repeats as expected, such as comparing multiple probes in the same prepared medium. A seller's statement that a probe is calibrated does not establish any of these field outcomes for the buyer's soil.

When a factory calibration can be enough

A generic curve may be acceptable when the commercial task is trend control rather than absolute water-content reporting. Examples include starting irrigation when a local trace falls below a threshold, comparing today's reading with the same probe yesterday, or identifying a blocked emitter through an abnormal response. Even in these cases, the threshold should be tuned after installation.

• The sensor's stated measurand matches the control logic. Do not use a relative "moisture" index as if it were VWC.
• The working medium resembles the supplier's documented calibration medium and the expected salinity is within the stated operating range.
• The buyer can accept a local threshold and trend, rather than a transferable number across fields or seasons.
• The supplier provides the exact model, output variant, firmware or register map, and a written explanation of how the percentage is calculated.
• The probe is placed in representative soil, the sensing volume is filled without air gaps, and the trend is compared with a rain or irrigation event.

A one-week observation after a wetting event is a sensible commissioning check, but it is not proof of accuracy. It shows whether the series moves plausibly and whether installation defects are obvious. Keep the distinction in the acceptance record.

When site-specific validation should be part of the RFQ

A field curve is warranted when a small bias changes a decision: irrigation thresholds tied to field capacity, water-use accounting, agronomic trials, model inputs, or comparisons between soil zones. Arizona Cooperative Extension notes that field calibration commonly uses dried soil samples and bulk density, while NC State Extension explains that manufacturer curves are general and may not fit each major soil type. UF IFAS likewise recommends additional site-specific calibration because soil properties, salinity and air gaps affect readings [E01][E02][E03].

• Quantitative VWC is required, not only a repeatable wet/dry signal.
• The deployment includes sand, clay, calcareous soil, saline irrigation, fertilizer pulses, rockwool, cocopeat or another nonstandard medium.
• The sensor will be moved, replaced by a different variant, or compared with another model.
• The product page does not identify the reference soil, calibration equation, uncertainty, or output semantics.
• The application is high-value enough that a false threshold could waste water, stress a crop, or invalidate a trial.

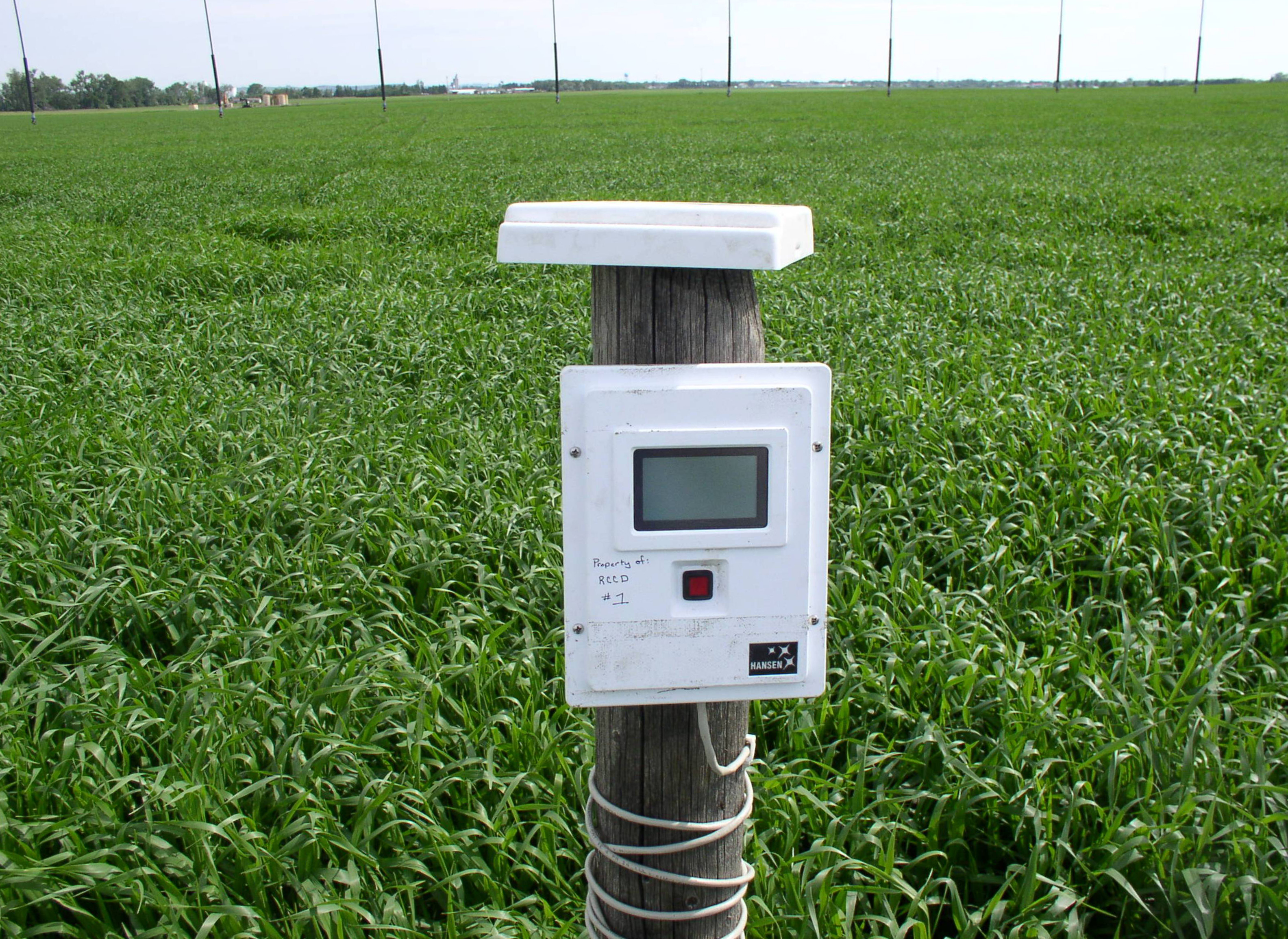

A practical field validation protocol

The following workflow is intentionally conservative. It is a buyer acceptance method, not a substitute for a laboratory metrology program.

1. Define the decision range. Write the range that matters: for example, the dry threshold to the post-irrigation state. Record whether the target is VWC, gravimetric water content, tension or a relative index. If the controller uses raw counts or voltage, preserve those values as well as the displayed percentage.
2. Install before sampling. Install the probe at the same depth and lateral position that will be used in production. Avoid rocks, large roots and visible voids. The reference sample must represent the same sensing volume as closely as practical; a sample taken far away may describe a different soil pocket.
3. Pair sensor readings with reference samples. Record timestamp, depth, irrigation or rainfall status, temperature, salinity context and the raw sensor output. Collect samples beside, not by disturbing, the probe. For gravimetric work, weigh the wet sample promptly, dry it to constant mass using the laboratory procedure, and retain the bulk-density measurement needed to convert gravimetric water to VWC.
4. Cover the range. Do not validate only at one wet point. A useful curve includes several states from wet through the dry range used by the decision. Repeat readings at more than one time or wetting cycle when the soil is heterogeneous. A single correlation coefficient cannot reveal a threshold bias or a curve that bends at high salinity.
5. Fit and test the relationship. Use the chosen equation or lookup table on a holdout set, not only the observations used to fit it. Report bias, absolute error or RMSE, the number of paired samples, the range covered and any residual pattern. If the curve is valid only for one soil zone or salinity band, label it that way.
6. Lock the implementation. Store the calibration version, sensor serial or batch, firmware, register map, equation or table, units and installation depth. A controller may apply a second scaling step, so verify the value at the final dashboard rather than only at the probe.
7. Recheck after change. Repeat a shorter validation after relocation, major soil preparation, media replacement, firmware change, cable replacement, unusual salinity exposure or a long storage period. Monitor drift and compare the trace with a reference observation rather than silently changing the threshold.

Factory versus field calibration at a glance

Approach	Best use	Evidence required	Main limitation
Factory curve	Trend control and first commissioning pass	Exact model documentation, units, calibration medium and installation instructions	May be biased in a different soil or salinity
Site-specific curve	Quantitative VWC, research or field-capacity thresholds	Paired sensor and reference samples across the decision range	Takes labor, samples, bulk density and version control
Verification check	Repeatability and installation acceptance	Replicate probes or reference checks at defined conditions	Does not by itself create an accurate VWC curve

Two sourcing candidates for a validation-led purchase

These candidates were selected for distinct buyer roles, not as a ranking. Marketplace attributes are supplier or platform statements, and the exact variant, calibration documentation and field performance still need to be confirmed before a purchase order.

Candidate — Veinasa TR-TS FDR sensor

Candidate — INFWIN SlabSense substrate sensor

RFQ language that prevents a calibration dispute

Ask the supplier to state, in the quotation rather than only in a chat message: the measured quantity and units; the calibration medium and equation; the acceptable operating temperature and EC range; the exact model and output variant; whether the buyer can upload a site curve; raw output before scaling; serial or batch records; and what evidence accompanies a replacement sensor. Require the supplier to separate "factory calibration completed" from "accuracy in the buyer's soil." If site calibration is expected, agree who supplies the reference samples, who fits the curve, where it is stored, and which acceptance metric decides pass or fail.

For procurement, the strongest practical acceptance language is conditional: the sensor must produce a repeatable response in the supplied variant, the delivered output must match the documented units and register map, and the buyer may reject or retune the conversion if paired reference observations exceed the agreed error across the stated operating range. That language is more useful than an unsupported promise that the product is "high precision."

Bottom line

Decide between factory and field calibration from the decision, not from the label. If the control logic only needs a repeatable local trend, a factory curve with field-tuned thresholds can be a reasonable starting point. If the number must mean volumetric water content across soils, seasons or sites, put a site-specific validation into the RFQ and budget for samples, bulk density and version control. In both cases, keep the raw output, the conversion, the reference observations and the acceptance metric in one record so the calibration can be audited later. Veinasa TR-TS is a lead for field soil where the buyer will build a local curve; INFWIN SlabSense is a lead for substrate (rockwool or cocopeat) work where the media defines the problem. Both remain sourcing candidates until the quoted variant passes the buyer's own validation.

Evidence and source notes

• E01 — NC State Cooperative Extension, Calibrating Soil Water Measuring Devices: https://content.ces.ncsu.edu/calibrating-soil-water-measuring-devices
• E02 — University of Arizona Cooperative Extension, A Guide to Maintaining and Calibrating Field Installed Soil and Plant Moisture Sensors: https://extension.arizona.edu/publication/guide-maintaining-and-calibrating-field-installed-soil-and-plant-moisture-sensors
• E03 — University of Florida IFAS, Common Questions When Using Soil Moisture Sensors for Citrus and Other Fruit Trees: https://ask.ifas.ufl.edu/publication/AE551
• E04 — ICT International, How to calibrate soil moisture sensors: https://ictinternational.com/casestudy/how-to-calibrate-soil-moisture-sensors/
• E05 — Alibaba marketplace listing, Veinasa TR-TS FDR sensor, Product ID 1600206828558: https://www.alibaba.com/product-detail/TR-TS-FDR-Detector-Irrigation-RS485_1600206828558.html
• E06 — Alibaba marketplace listing, INFWIN SlabSense substrate moisture temperature EC sensor, Product ID 1601401255607: https://www.alibaba.com/product-detail/SlabSense-Substrate-Moisture-Temperature-ECSensor-for_1601401255607.html
